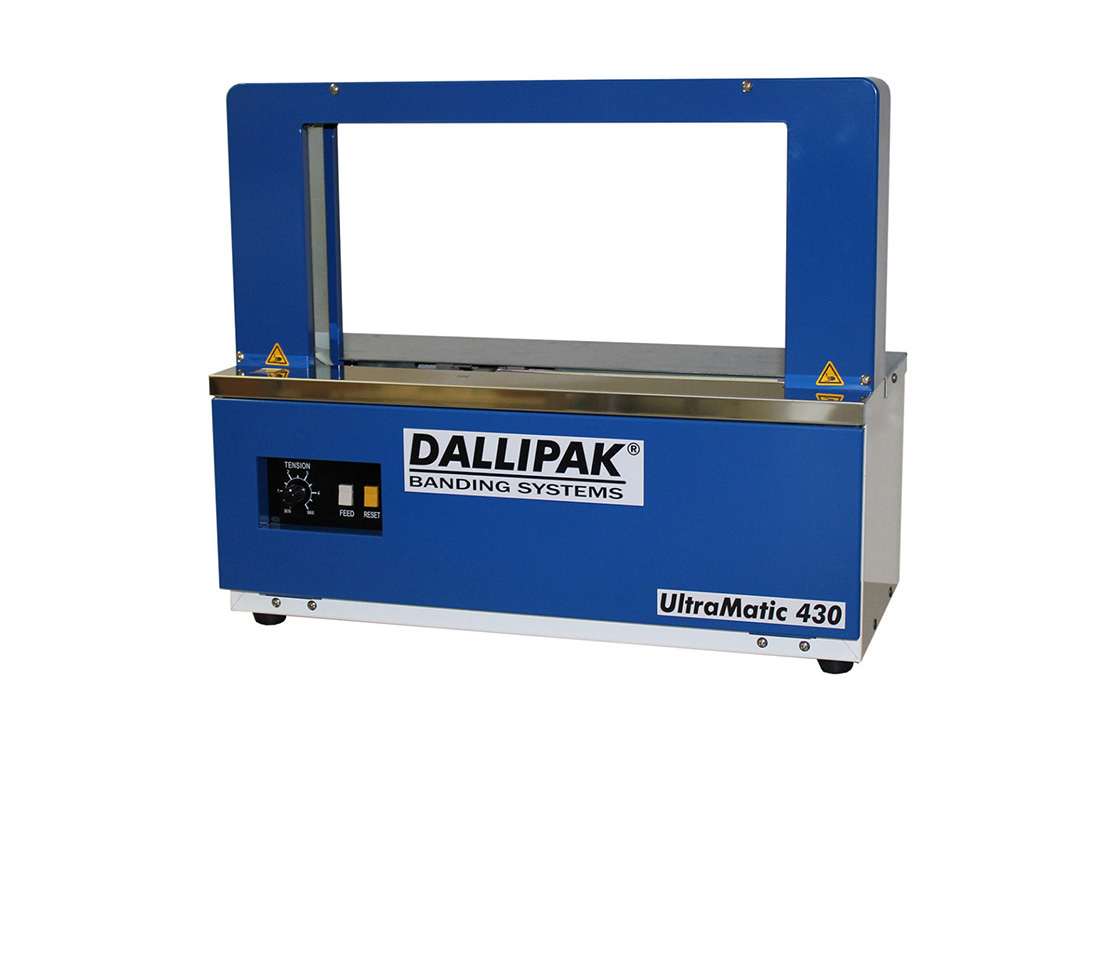

UltraMatic 430

A high performance, economic banding machine - unique in its class!


Now with integrated counter
The table banding machine UltraMatic 430 offers the optimizes frame guide and sealing technology.

Paper brown/white
Transparent film
Printed material
Due to better sealing technology we succeeded in getting a high tearing strength of the two overlapping bands on the one side and there is also a tearing help trough the overlapping bands on the other side. Furthermore the roll size of this banding machine can be enhanced with an optional side roll holder. Due to our movable table the mobility of a table appliance is ensured.

Band tension from soft to strong
Cheap banding materials
Wear and tear free frame

materialcolourArticle no. 1Article no. 2
banding paperbrownPB 8029180PB 8029500
banding paperwhitePW 8029180PW 8029500
banding filmtransparentFTB 8029250FTB 8029500
banding filmtransparentFTB 11029200FTB 11029500

500 m rolls only in conjunction with side magazine

Type:UltraMatic 430
beamwidth:ca. 25 mm up to 425 mm
bundle height:min. 5 mm up to max. 200 mm
tension:soft to strong
bandwidth:29 mm
roll length:180 to 250 lfm
core holder: 40 mm
speed: ca. 32 cycles / minute
machine dimensions (L x W x H):570 x 346 x 490 mm
mass:33 kg
power supply:230 V 50 Hz 3 A

Seiten, die mit Mobirise gemacht werden, sind zu 100% mobilfreundlich und entsprechen den neusten Google Tests. Google selber sagt, dass sie die Webseiten mögen. (offiziell)!

Mobirise Themes basieren auf Bootstrap 3 und Bootstap 4 - den leistungsfähigsten Frameworks. Selbst wenn Sie nicht coden können, können Sie dann zur Bootstrap Familie gehören.

Wählen Sie aus einer großen Auswahl der jüngsten voreingestellten Blocks - Full Screen Intro, Bootstrap Slider, Content Slider, responsive Bildergalerie mit der Lightbox, Parallax Scrolling, Video Hintergründe, mobiles Menü sowie noch viele weitere Dinge.

Optional accessories

Product stopper

The product stopper is built out of stainless steel and can be adjusted vertically and horizontally by hand-screws.

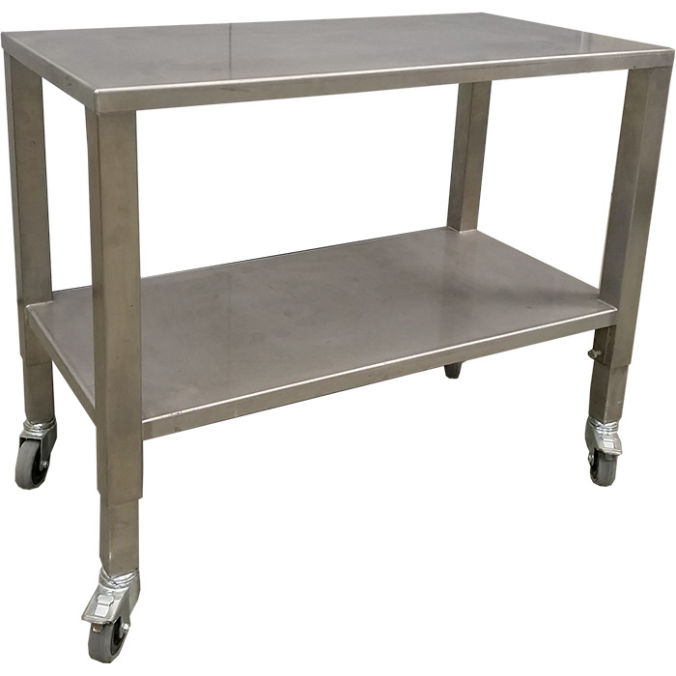

Stainless steel wagon

The wagon (400 x 800 mm) is adjustable in height and built out of stainless steel.

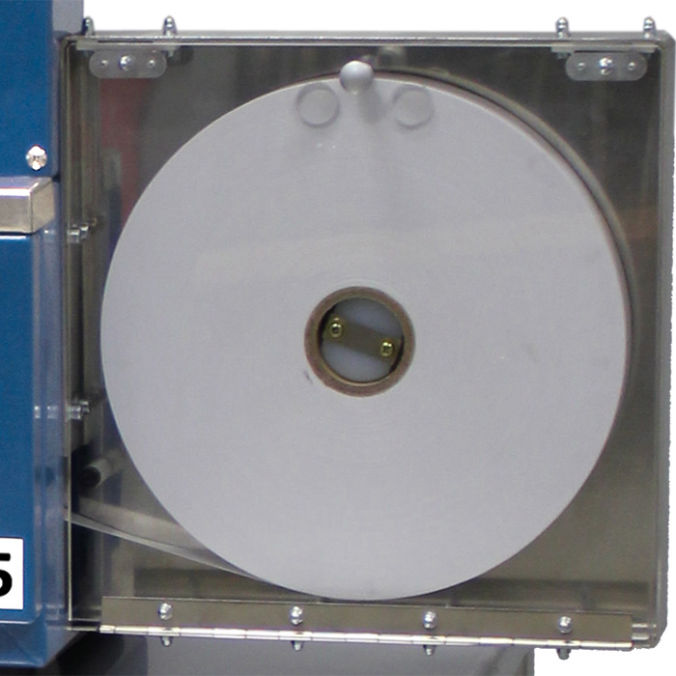

Side roll dispenser

In the side dispenser you can put in rolls up to 500 meters.
